B-MAX 2012 – Engine – 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY) – Cylinder Head – Removal and Installation

Engine - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY) - Cylinder HeadB-MAX 2012.75 (01/2012-)
Removal and Installation

General Equipment
Polydrive Bit Socket
Torx Bit Socket

Removal

  1. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), General Procedures).

  1. NOTE: Be prepared to collect escaping fluids.

Click to resize E143810

  1. Remove the following items:
    1. Refer to: Turbocharger (303-04H Fuel Charging and Controls - Turbocharger - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Removal and Installation).
    1. Refer to: Camshafts (303-01A Engine - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Removal and Installation).

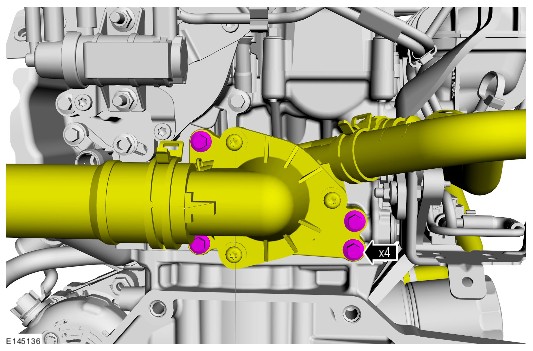

Click to resize E145136

Click to resize E145137

  1. NOTE: The screw head can either be a Polydrive or Torx Bit type.

    Use the General Equipments: Polydrive Bit Socket, Torx Bit Socket

Click to resize E144395

Installation

  1. cautionNOTICE: Make sure that new bolts are installed.

    NOTE: Only tighten the bolts finger tight at this stage.

    Use the General Equipment: Polydrive Bit Socket
    Torque:
    Stage 1:
    10 Nm
    Stage 2:
    40 Nm
    Stage 3:
    Loosen: 45°
    Stage 4:
    30 Nm
    Stage 5:
    90°
    Stage 6:
    90°

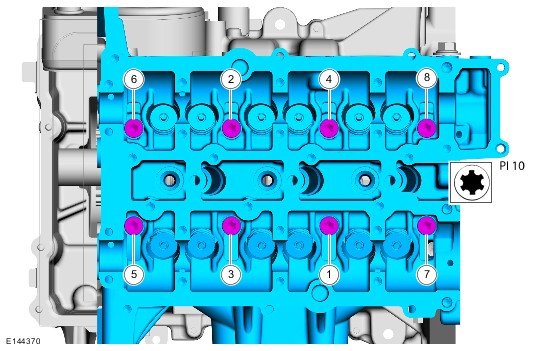

Click to resize E144370

  1. Torque: 10 Nm

Click to resize E145136

  1. Torque: 10 Nm

Click to resize E145137

  1. NOTE: Be prepared to collect escaping fluids.

    Torque: 25 Nm

Click to resize E143810

  1. Install the following items:
    1. Refer to: Camshafts (303-01A Engine - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Removal and Installation).
    1. Refer to: Turbocharger (303-04H Fuel Charging and Controls - Turbocharger - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Removal and Installation).
  1. Refer to: Specifications (303-01A Engine - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Specifications).

Click to resize E144459
