B-MAX 2012 – Manual Transmission External Controls – 5-Speed Manual Transmission B5/IB5 – Gearshift Cables – Removal and Installation

Manual Transmission External Controls - 5-Speed Manual Transmission – B5/IB5 - Gearshift CablesB-MAX 2012.75 (01/2012-)
Removal and Installation

General Equipment
Draw Cord

Removal

  1. NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Gearshift Lever (308-06 Manual Transmission External Controls - 5-Speed Manual Transmission – B5/IB5, Removal and Installation).

  1. cautionNOTICE: Take extra care not to damage the wiring harnesses.

Click to resize E152519

  1. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 1.6L Duratec-16V Ti-VCT (77kW/105PS) – Sigma, Removal and Installation).
    Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 1.5L Duratorq-TDCi (55kW/75PS), Removal and Installation).
    Refer to: Air Cleaner (303-12F Intake Air Distribution and Filtering - 1.6L Duratorq-TDCi (70kW/95PS) (T3), Removal and Installation).
Vehicles with diesel engine

  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

Click to resize E152520

Vehicles with 1.0L engine

  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

Click to resize E152520

Vehicles with 1.4L engine

  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

Click to resize E106786

All vehicles
  1. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
  1. If equipped.

Click to resize E144268

  1.
    1. If equipped.

Click to resize E144424

  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

Click to resize E143693

  1. Attach a pull cord to the selector lever cable.
    Use the General Equipment: Draw Cord
  1.

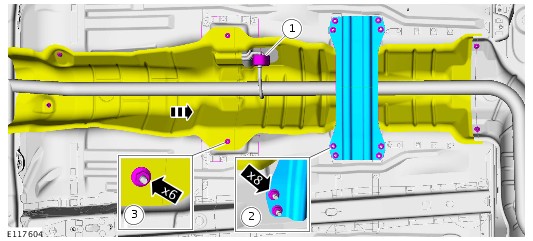

    1. If equipped.
    1. Torque: 40 Nm

Click to resize E117604

  1.
    1. Torque: 9 Nm

Click to resize E152527

  1. Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

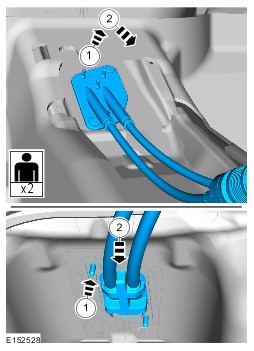

  1. NOTE: This step requires the aid of another technician.

Click to resize E152528

Installation

  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

    To install, reverse the removal procedure.
  1. Refer to: Gearshift Cable Adjustment (308-00 Manual Transmission and Clutch - General Information, General Procedures).
