B-MAX 2012 – Engine – 1.4L Duratec-16V (66kW/90PS) – Crankshaft Rear Seal – Removal and Installation

Engine - 1.4L Duratec-16V (66kW/90PS) - Crankshaft Rear SealB-MAX 2012.75 (01/2012-)
Removal and Installation

Special Tool(s)

Click to resize E63417

303-393A
Locking Tool, Flywheel

Removal

  1. Remove the following items:
  1.
    1. Install Special Service Tool: 303-393A.

Click to resize E133197

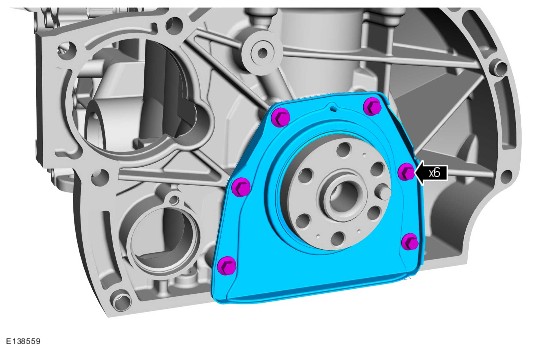

Click to resize E138559

Installation

  1. cautionNOTICE: Make sure that the mating faces are clean and free of foreign material.

    NOTE: New crankshaft rear seal carriers are supplied with an alignment sleeve which must be removed after installation.

    Torque: 10 Nm

Click to resize E130526

  1. NOTE: Make sure that new bolts are installed.

    Torque:
    Stage 1:
    30 Nm
    Stage 2:
    80°
  1. Remove Special Service Tool: 303-393A.

Click to resize E133309

  1. Refer to: Clutch Disc and Pressure Plate (308-01 Clutch - 5-Speed Manual Transmission – B5/IB5, Removal and Installation).
  1. Remove the following items:
    • Refer to: Oil Pan (303-01C Engine - 1.4L Duratec-16V Flex Fuel (71kW/96PS) – Sigma, Liquefied Petroleum Gas (LPG), Removal and Installation).
  1. Install the following items:
    • Refer to: Oil Pan (303-01C Engine - 1.4L Duratec-16V Flex Fuel (71kW/96PS) – Sigma, Liquefied Petroleum Gas (LPG), Removal and Installation).
