Installation Special Tool(s) / General Equipment | 204-609 Protection Cap, Ball Joint Gaiter | | 205-775 Protector, Halfshaft Seal | | 303-122 Lifting Bracket, Engine | Cable Ties | Floor Crane | Hose Clamp Remover/Installer | Lower Arm Down Force Lever | Mounting Table Set | Retaining Strap | Wooden Block |
Materials Name | Specification |
---|
?????? K-HT A88S-X1C220-AA | ESD-M1C220-A |
Install Special Service Tool: 303-122.
|

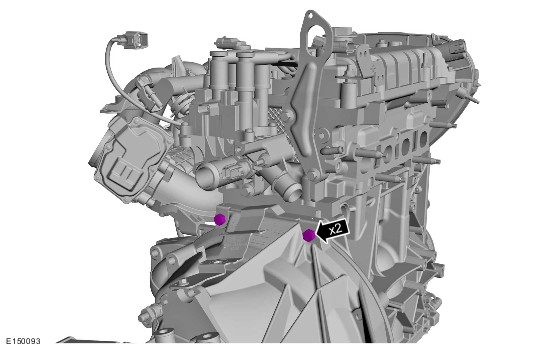

NOTICE: Make sure that the locating dowels remain installed.
|

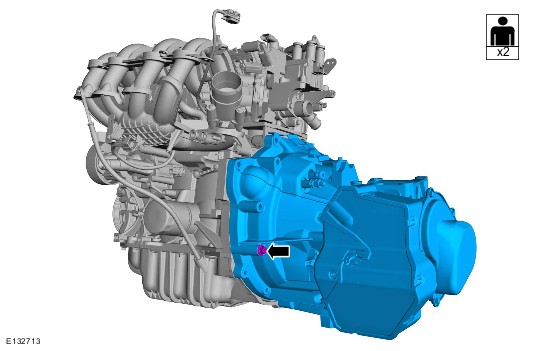

WARNING: Always secure engines, transmissions, or other heavy components to the support fixture with straps and wooden support blocks. Improperly secured assemblies could fall off the fixture, resulting in serious personal injury.
|
Remove Special Service Tool: 303-122.
|
NOTICE: Make sure that no components catch.
Lower the vehicle to take the load off the engine mountings.
|

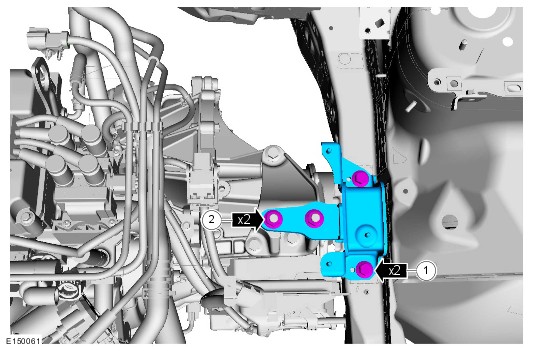

NOTE: Make sure that the component is installed to the position noted before removal. NOTE: Only tighten the bolts finger tight at this stage.
|
NOTE: Make sure that the component is installed to the position noted before removal. NOTE: Only tighten the bolts finger tight at this stage.
|
NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Refer to: Clutch System Bleeding (308-00 Manual Transmission and Clutch - General Information, General Procedures).
|
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), General Procedures).
|
NOTICE: Jointing compound must not be used forward of the catalytic converter.
Torque: Stage 1: 20 NmStage 2: 55 Nm
|
NOTICE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.
|
NOTE: Install all the bolts finger tight before final tightening.
|
NOTICE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.
|
NOTICE: Gearshift cables must not be kinked or bent.
|
Vehicles with air conditioning NOTICE: Make sure that no strain is placed on the refrigerant lines.
|
NOTE: Make sure that a new component is installed.
|
2. NOTICE: The inner constant velocity (CV) joint must not be bent more than 18°.
The outer constant velocity (CV) joint must not be bent more than 45°.
Make sure that the strut is not moved more than necessary to prevent damage to top mount.
|

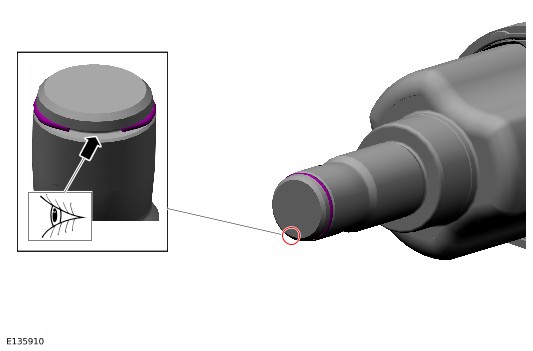

NOTICE: Take extra care not to damage the seal.
Remove the special tool before completely installing the halfshaft.
Remove Special Service Tool: 205-775.
|
Remove Special Service Tool: 204-609.
|
WARNINGS: Make sure that a new bolt is installed.
Make sure that a new nut is installed.
|
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
|
NOTICE: The outer constant velocity (CV) joint must not be bent more than 45°.
The inner constant velocity (CV) joint must not be bent more than 18°.
Make sure that the strut is not moved more than necessary to prevent damage to top mount.
Take extra care not to damage the edges of the component.
Take extra care not to damage the mating faces.
Take extra care not to damage the seal.
Install Special Service Tool: 205-775.
|
NOTICE: Take extra care not to damage the seal.
Remove Special Service Tool: 205-775.
|
1. NOTICE: The outer constant velocity (CV) joint must not be bent more than 45°.
The inner constant velocity (CV) joint must not be bent more than 18°.
Make sure that the strut is not moved more than necessary to prevent damage to top mount.
NOTE: Make sure that a new component is installed.
3. NOTICE: Make sure that new nuts are installed. Torque: Stage 1: 6 NmStage 2: 25 Nm
|
Remove Special Service Tool: 204-609.
|
WARNINGS: Make sure that a new bolt is installed.
Make sure that a new nut is installed.
|
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
|
Refer to: Generator (414-02B Generator and Regulator - 1.4L Duratec-16V (66kW/90PS), Removal and Installation).
|
NOTICE: Make sure that no strain is placed on the refrigerant lines.
|
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), General Procedures).
|

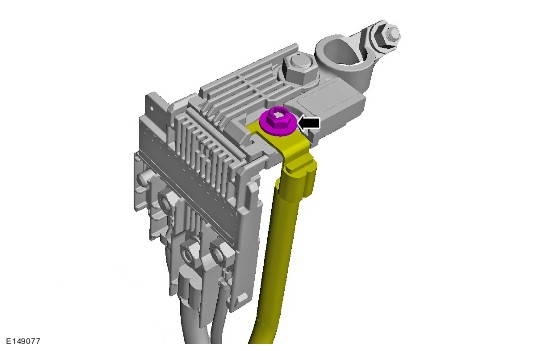

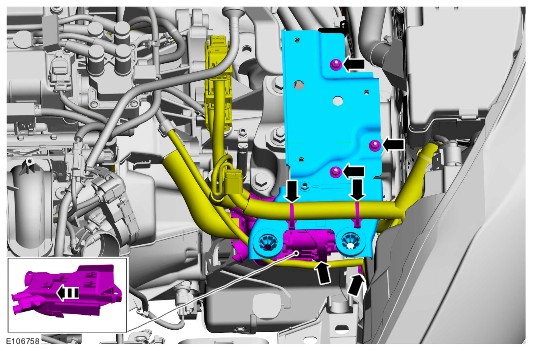

Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
|
|
|
