Installation Special Tool(s) / General Equipment | 204-609 Protection Cap, Ball Joint Gaiter | | 205-775 Protector, Halfshaft Seal | | 303-122 Lifting Bracket, Engine | | 308-256 Remover, Halfshaft | Cable Ties | Floor Crane | Hose Clamp Remover/Installer | Lower Arm Down Force Lever | Magnetic Socket | Mounting Table Set | Retaining Strap | Wooden Block |
Install Special Service Tool: 303-122.
|

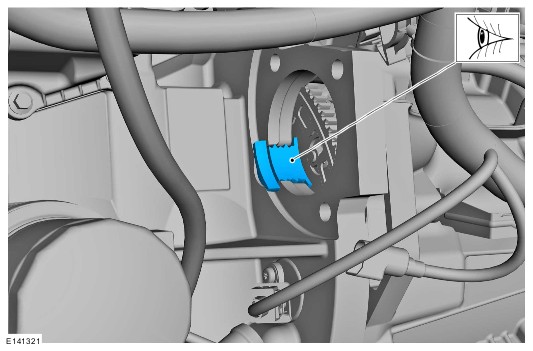

NOTICE: Make sure that the component aligns with the installation mark.
NOTE: This step is only necessary when installing a new component.
|

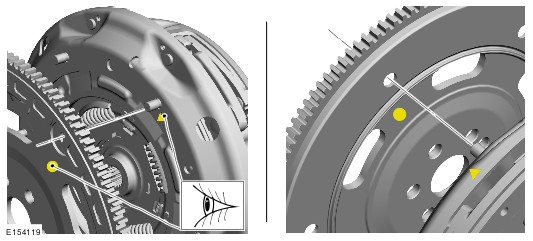

NOTE: Make sure that the component is installed to the position noted before removal.
|

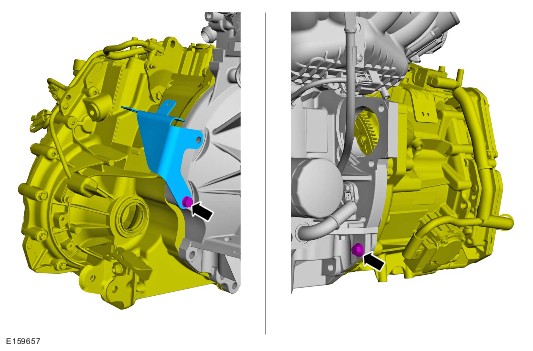

NOTICE: Make sure that the locating dowels remain installed.

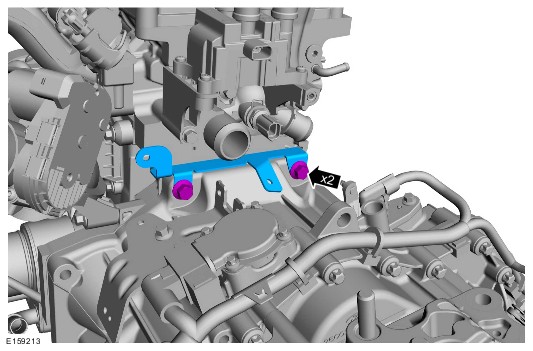

Tighten on both sides simultaneously.
Torque: 48 Nm
|
NOTICE: Make sure that new nuts are installed.
Only rotate the crankshaft clockwise.
Torque: Stage 1: 5 NmStage 2: 25 Nm
|
NOTE: The gasket is to be reused unless damaged.
|

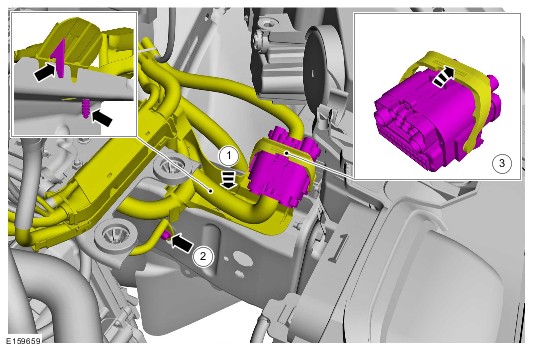

NOTICE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.
Take extra care not to damage the wiring harnesses.
Take extra care when handling the component terminals.

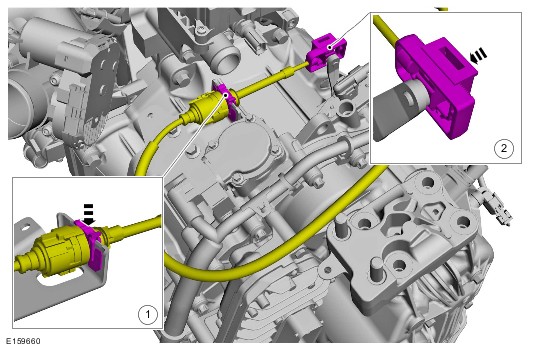

NOTE: Make sure that the wiring harnesses are correctly located.
|
WARNING: Always secure engines, transmissions, or other heavy components to the support fixture with straps and wooden support blocks. Improperly secured assemblies could fall off the fixture, resulting in serious personal injury.
|
Remove Special Service Tool: 303-122.
|
NOTICE: Make sure that no components catch.
Lower the vehicle.
|
NOTE: Make sure that the component is installed to the position noted before removal. NOTE: Only tighten the bolts finger tight at this stage.
|
NOTE: Make sure that the component is installed to the position noted before removal. NOTE: Only tighten the bolts finger tight at this stage.
|
NOTICE: Jointing compound must not be used forward of the catalytic converter.
Torque: Stage 1: 20 NmStage 2: 55 Nm
|
NOTICE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.
|
NOTE: Install all the bolts finger tight before final tightening.
|
NOTICE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.
|
NOTE: Install all the bolts finger tight before final tightening.
|
Vehicles with air conditioning NOTICE: Make sure that no strain is placed on the refrigerant lines.
|
Refer to: Generator (414-02C Generator and Regulator - 1.6L Duratec-16V Ti-VCT (77kW/105PS) – Sigma, Removal and Installation).
|
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
|
NOTICE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
|
Install Special Service Tool: 204-609.
|
WARNING: Be prepared to collect escaping fluid.
NOTICE: Take extra care not to damage the edges of the component.
Take extra care not to damage the mating faces.
Take extra care not to damage the seal.
|

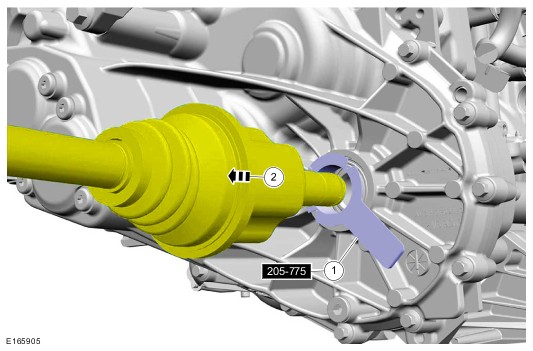

1. NOTICE: Take extra care not to damage the seal.
2. NOTICE: The inner constant velocity (CV) joint must not be bent more than 18°.
The outer constant velocity (CV) joint must not be bent more than 45°.
Make sure that the strut is not moved more than necessary to prevent damage to top mount.
|
NOTICE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
The inner constant velocity (CV) joint must not be bent more than 18°.
The outer constant velocity (CV) joint must not be bent more than 45°.
|
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
|
NOTICE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
|
Install Special Service Tool: 204-609.
|
NOTICE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
NOTE: Be prepared to collect escaping fluid.
|
NOTICE: The outer constant velocity (CV) joint must not be bent more than 45°.
The inner constant velocity (CV) joint must not be bent more than 18°.
Make sure that the strut is not moved more than necessary to prevent damage to top mount.

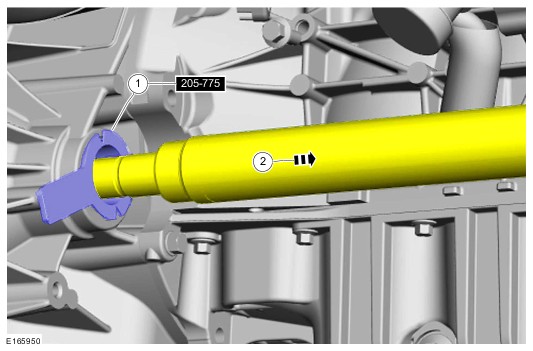

Take extra care not to damage the seal.
|
NOTICE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
The inner constant velocity (CV) joint must not be bent more than 18°.
The outer constant velocity (CV) joint must not be bent more than 45°.
|
NOTICE: Make sure that no strain is placed on the refrigerant lines.
|
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.4L Duratec-16V (66kW/90PS), General Procedures).
|
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.4L Duratec-16V (66kW/90PS), General Procedures).
|
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.4L Duratec-16V (66kW/90PS), General Procedures).
|
Refer to: Quick Release Coupling (310-00B Fuel System - General Information - 1.4L Duratec-16V (66kW/90PS), General Procedures).
|
3. NOTICE: Take extra care when handling the component terminals.
|
Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
|
|
|
