Installation Special Tool(s) / General Equipment | 303-122 Lifting Bracket, Engine | | 303-393A Locking Tool, Flywheel | | 303-435 Mounting Stand | | 303-435-06 Mounting Bracket for 303-435 | | 303-435-14B Mounting Plate for 303-435-06 | Floor Crane | Hose Clamp Remover/Installer |
Materials | Name | Specification |
|---|
???????? ????? - 5W-20 | WSS-M2C948-B |
 NOTICE: Make sure that new bolts are installed.
Torque: Stage 1: 30 NmStage 2: 80°
|
NOTE: Make sure that the component is installed to the position noted before removal.
|
NOTE: Make sure that the components are installed to the position noted before removal.
|
NOTE: Install all the bolts finger tight before final tightening.
|
NOTE: Install all the bolts finger tight before final tightening.
|
NOTICE: Make sure that the area around the component is clean and free of foreign material.
|

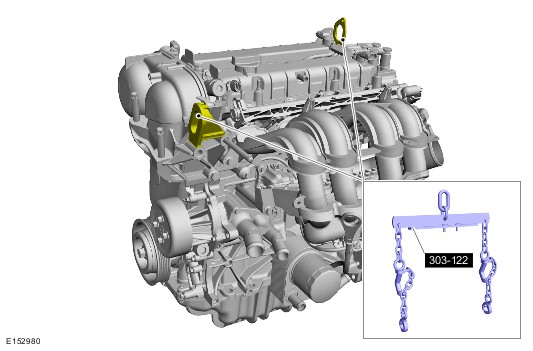

Install Special Service Tool: 303-122.
|
|
|
