B-MAX 2012 – Engine – 1.5L Duratorq-TDCi (55kW/75PS) – Cylinder Head – Disassembly and Assembly of Subassemblies

Engine - 1.5L Duratorq-TDCi (55kW/75PS) - Cylinder HeadB-MAX 2012.75 (01/2012-)
Disassembly and Assembly of Subassemblies

Special Tool(s)

Click to resize 21007A

303-037
Installer, Valve Stem Seal

Click to resize 21024

303-060
Compressor, Valve Spring

Click to resize 2102407

303-060-07
Adapter for 303-060

Click to resize E126211

303-060-10
Adapter for 303-060

Click to resize 21156

303-362
Installer, Valve Stem Collets

Click to resize 21211

303-508
Pliers, Valve Stem Seal

Disassembly

NOTE: Removal steps in this procedure may contain installation details.

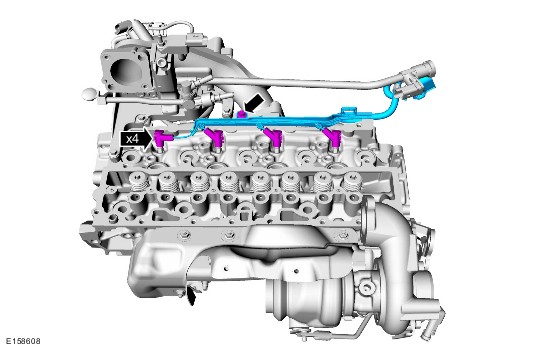

  1. Torque: 8 Nm

Click to resize E158608

  1. Torque: 6 Nm

Click to resize E158614

  1. Torque: 8 Nm

Click to resize E158613

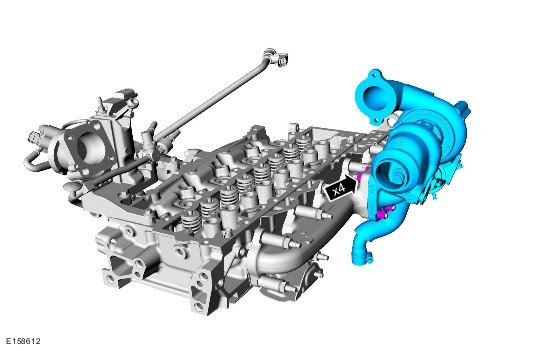

  1. NOTICE:

    caution Make sure that new nuts are installed.

    caution Take extra care not to damage the mating faces.

    Torque: 26 Nm

Click to resize E158612

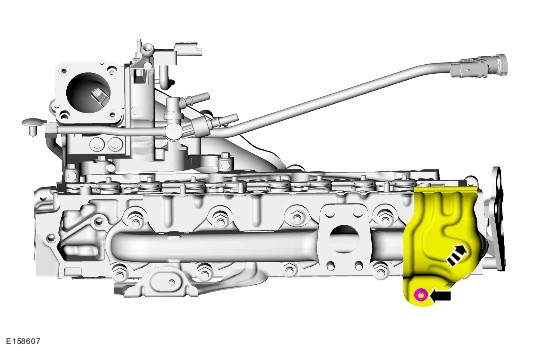

  1. Torque: 8 Nm

Click to resize E158607

  1. Torque: 25 Nm

Click to resize E158606

  1. Torque: 10 Nm

Click to resize E158611

  1. Torque: 22 Nm

Click to resize E108473

  1. Torque: 8 Nm

Click to resize E158609

  1. Torque: 10 Nm

Click to resize E158610

  1. Use Special Service Tools: 303-060, 303-060-07, 303-060-10, 303-362.

Click to resize E158624

  1. NOTE: Note the position of the components before removal.

Click to resize E108480

  1. Use Special Service Tool: 303-508.

Click to resize E108481

  1. NOTE: Note the position of the components before removal.

Click to resize E108479

Assembly

  1. To install, reverse the removal procedure.

  1. NOTE: Make sure that new components are installed.

    Use Special Service Tool: 303-037.

Click to resize E108523
