B-MAX 2012 – Engine – 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY) – Engine5-Speed Manual Transmission B5/IB5 – Installation

Engine - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY) - Engine—5-Speed Manual Transmission – B5/IB5B-MAX 2012.75 (01/2012-)

Installation

Special Tool(s) / General Equipment

Click to resize E75372

204-609
Protection Cap, Ball Joint Gaiter

Click to resize E47098

205-775
Protector, Halfshaft Seal

Click to resize 21068A

303-122
Lifting Bracket, Engine
Cable Ties
Floor Crane
Hose Clamp Remover/Installer
Lower Arm Down Force Lever
Mounting Table Set
Retaining Strap
Wooden Block
Materials
NameSpecification
?????? K-HT
A88S-X1C220-AA
ESD-M1C220-A
?????? KS-PS
YS5J-M1C9107-AA
SA-M1C9107-A
  1. Install Special Service Tool: 303-122.
    Use the General Equipment: Floor Crane

Click to resize E152875

  1. Apply a thin coating.

Click to resize E130316

  1. Torque: 48 Nm

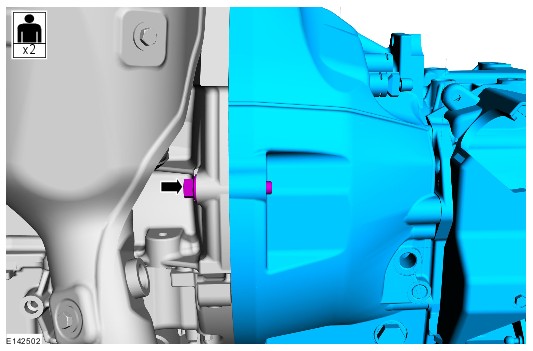

Click to resize E142502

  1. Torque: 48 Nm

Click to resize E142281

  1. Torque: 48 Nm

Click to resize E142267

  1.
    1. Torque: 25 Nm

Click to resize E142404

  1. Torque:
    6 Nm
    12 Nm
    35 Nm

Click to resize E153500

  1.
    1. Torque: 48 Nm
    1. Torque: 35 Nm

Click to resize E153099

  1. warningWARNING: Make sure that the engine and transmission assembly is on wooden blocks and secured with suitable retaining straps.

    Use the General Equipments: Mounting Table Set, Wooden Block, Retaining Strap

Click to resize E107062

  1. Remove Special Service Tool: 303-122.

Click to resize E152875

  1. cautionNOTICE: Make sure that no components catch.

    Lower the vehicle.
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

Click to resize E103239

Click to resize E141144

  1. cautionNOTICE: Make sure that a new bolt is installed.

    Torque: 80 Nm

Click to resize E102935

Click to resize E154022

  1. Torque: 10 Nm

Click to resize E147765

  1. NOTE: Make sure that the component is installed to the position noted before removal.

    1. Torque: 80 Nm
    1. NOTE: Only tighten the bolts finger tight at this stage.

Click to resize E151740

  1. Remove the following items:

Click to resize E103239

Click to resize E172989

  1. NOTICE:

    caution The outer constant velocity (CV) joint must not be bent more than 45°.

    caution The inner constant velocity (CV) joint must not be bent more than 18°.

    caution Make sure that the strut is not moved more than necessary to prevent damage to top mount.

    caution Take extra care not to damage the edges of the component.

    caution Take extra care not to damage the mating faces.

    caution Take extra care not to damage the seal.

    Install Special Service Tool: 205-775.

Click to resize E145019

  1. cautionNOTICE: Take extra care not to damage the seal.

    Remove Special Service Tool: 205-775.
  1.
    1. 1. NOTICE:

      caution The outer constant velocity (CV) joint must not be bent more than 45°.

      caution The inner constant velocity (CV) joint must not be bent more than 18°.

      caution Make sure that the strut is not moved more than necessary to prevent damage to top mount.

    1. NOTE: Make sure that a new component is installed.

    1. 3. cautionNOTICE: Make sure that new nuts are installed.

      Torque:
      Stage 1:
      6 Nm
      Stage 2:
      25 Nm

Click to resize E158130

  1. Remove Special Service Tool: 204-609.

Click to resize E145100

  1. Use the General Equipment: Lower Arm Down Force Lever

Click to resize E175113

  1. WARNINGS:

    warning Make sure that a new bolt is installed.

    warning Make sure that a new nut is installed.

    Torque: 52 Nm

Click to resize E102188

  1. Torque: 28 Nm

Click to resize E102938

  1. Refer to: Transmission Fluid Level Check (308-03 Manual Transmission - 5-Speed Manual Transmission – B5/IB5, General Procedures).
    Refer to: Transmission Fluid Level Check (307-01 Automatic Transmission - 6-Speed PowerShift Transmission – DPS6/6DCT250, General Procedures).
  1. If equipped.

Click to resize E144268

  1. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. NOTE: Note the different lengths of the bolts.

    NOTE: Install all the bolts finger tight before final tightening.

    Torque:
    70 Nm
    63 Nm

Click to resize E159730

  1. Refer to: Transmission Fluid Level Check (308-03 Manual Transmission - 5-Speed Manual Transmission – B5/IB5, General Procedures).
  1. Torque: 10 Nm

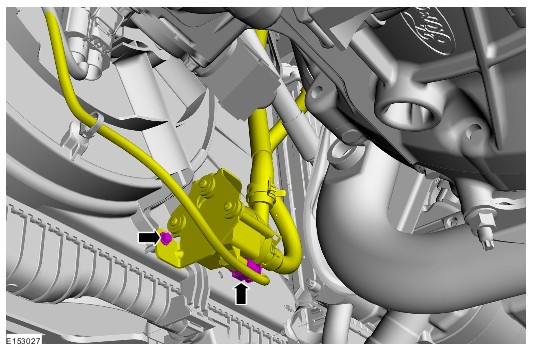

Click to resize E153027

  1. cautionNOTICE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

    1. Apply a thin coating.
    1. Torque: 48 Nm

Click to resize E142284

  1. Remove the following items:
    1. Use the General Equipment: Cable Ties

Click to resize E98643

Vehicles without air conditioning
  1. Torque: 25 Nm

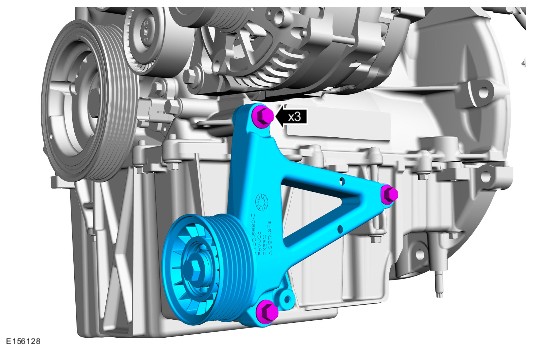

Click to resize E156128

All vehicles
  1. Refer to: Generator (414-02A Generator and Regulator - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), Removal and Installation).

Click to resize E130580

  1. Refer to: Gearshift Cable Adjustment (308-00 Manual Transmission and Clutch - General Information, General Procedures).
  1. If equipped.

Click to resize E141110

  1.
    1. If equipped.

Click to resize E144424

  1.
    1. If equipped.

Click to resize E146744

  1. Use the General Equipment: Hose Clamp Remover/Installer

Click to resize E142424

Click to resize E151743

  1. Refer to: Clutch System Bleeding (308-00 Manual Transmission and Clutch - General Information, General Procedures).

Click to resize E146747

Click to resize E146742

Click to resize E146741

  1. Torque: 25 Nm

Click to resize E146740

  1. Torque:
    11 Nm

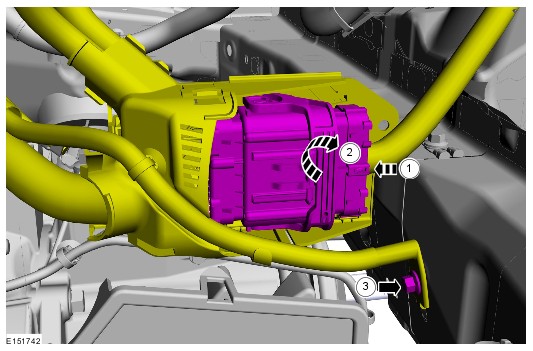

Click to resize E151742

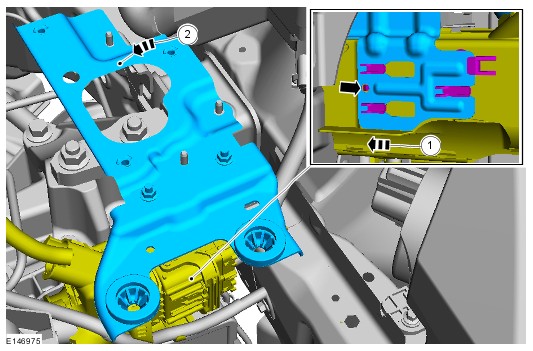

Click to resize E146975

  1. Torque: 25 Nm

Click to resize E146738

  1. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
  1.
    1. Torque: 10 Nm
    1. Torque: 12 Nm

Click to resize E153029

  1. Torque: 48 Nm

Click to resize E151741

  1. Torque: 15 Nm

Click to resize E150099

  1. Use the General Equipment: Hose Clamp Remover/Installer

Click to resize E153026

  1. Use the General Equipment: Hose Clamp Remover/Installer
    Torque:
    11 Nm

Click to resize E150096

Click to resize E152876

Click to resize E145527

  1. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 1.0L EcoBoost (74kW/100PS)/1.0L EcoBoost (90kW/120PS)/1.0L EcoBoost (103kW/140PS) (YY), General Procedures).
