B-MAX 2012 – Engine – 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU) – Engine – Removal

Engine - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU) - EngineB-MAX 2012.75 (01/2012-)

Removal

Special Tool(s) / General Equipment

Click to resize E207011

309-004
Pliers, Exhaust Clamps

Click to resize E207012

309-005
Pliers, Exhaust Hangers
Cable Ties
Hose Clamp Remover/Installer
Mounting Table Set
Retaining Strap
Wooden Block

Click to resize E156755

  1. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).
  1. Refer to: Cooling Fan Motor and Shroud (303-03E Engine Cooling - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
  1. Use the General Equipment: Hose Clamp Remover/Installer

Click to resize E256248

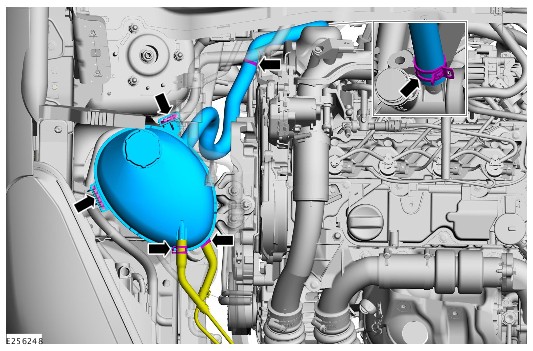

  1. cautionNOTICE: Make sure that all openings are sealed.

    NOTE: Use suitable paper to absorb any escaping fluid.

    Refer to: Quick Release Coupling (310-00F Fuel System - General Information - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), General Procedures).

Click to resize E256256

Click to resize E256252

Click to resize E256255

  1. Torque: 10 Nm

Click to resize E255966

  1. If equipped.

Click to resize E256251

  1. NOTE: Be prepared to collect escaping fluid.

    Use the General Equipment: Hose Clamp Remover/Installer

Click to resize E158753

  1. NOTE: Be prepared to collect escaping fluid.

    Use the General Equipment: Hose Clamp Remover/Installer

Click to resize E189531

  1. Refer to: Quick Release Coupling (310-00F Fuel System - General Information - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), General Procedures).

Click to resize E158751

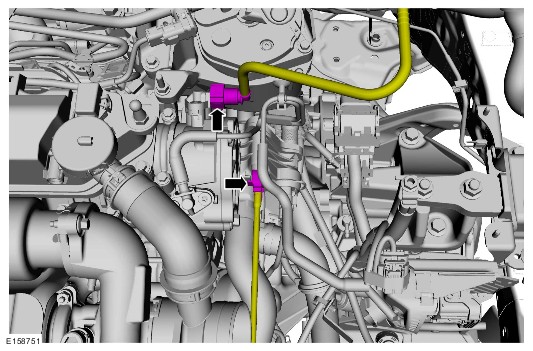

  1. cautionNOTICE: Make sure that the exhaust flexible pipe is not forcibly bent or twisted.

    Use the General Equipment: Cable Ties

Click to resize E186124

  1. Use Special Service Tool: 309-005.

Click to resize E250245

  1. Use Special Service Tool: 309-004.

Click to resize E255571

  1. Refer to: Accessory Drive Belt (303-05E Accessory Drive - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
Vehicles with air conditioning
  1. NOTE: Make sure that no components catch.

Click to resize E196007

6-Speed Manual Transmission - B6
  1. Refer to: Front Halfshaft LH - Detach from the transmission (205-04D, Removal and Installation).
  1. Refer to: Front Halfshaft RH - Detach from the transmission (205-04D, Removal and Installation).
  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

Click to resize E189532

  1. NOTICE:

    caution If the brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

    caution Make sure that all openings are sealed with clean blanking caps.

    NOTE: Be prepared to collect escaping fluid.

Click to resize E258111

Click to resize E190483

Click to resize E254287

Click to resize E256250

6-Speed Manual Transmission 6MX65
  1. Refer to: Front Halfshaft LH - Detach from the transmission (205-04C, Removal and Installation).
  1. Refer to: Front Halfshaft RH - Detach from the transmission (205-04C, Removal and Installation).
  1. cautionNOTICE: Gearshift cables must not be kinked or bent.

Click to resize E256970

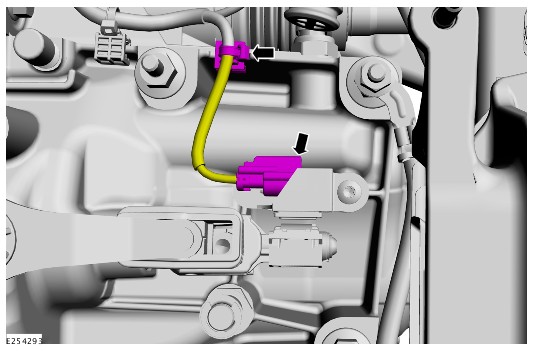

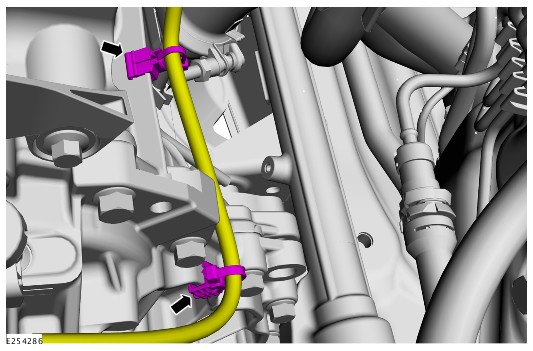

  1. cautionNOTICE: Make sure that all openings are sealed.

    NOTE: Be prepared to collect escaping fluid.

Click to resize E254291

Click to resize E254294

Click to resize E254293

Click to resize E254286

Click to resize E254285

Click to resize E254287

Click to resize E256785

  1. warningWARNING: Always secure engines, transmissions, or other heavy components to the support fixture with straps and wooden support blocks. Improperly secured assemblies could fall off the fixture, resulting in serious personal injury.

    Use the General Equipments: Mounting Table Set, Wooden Block, Retaining Strap

Click to resize E103239

Click to resize E256254

Click to resize E256787

  1. cautionNOTICE: Make sure that no components catch.

    Refer to: Jacking and Lifting (100-02, Description and Operation).

Click to resize E103239

  1. warningWARNING: Always secure engines, transmissions, or other heavy components to the support fixture with straps and wooden support blocks. Improperly secured assemblies could fall off the fixture, resulting in serious personal injury.

    cautionNOTICE: Make sure that no components catch.

Click to resize E189546

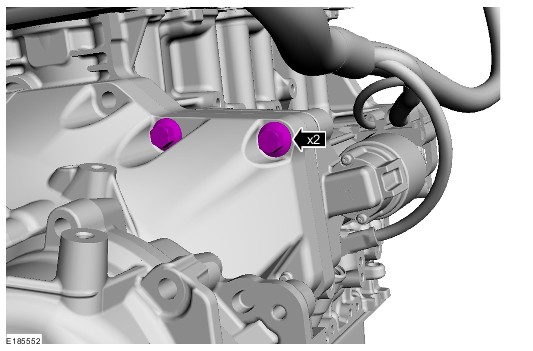

Click to resize E185552

Click to resize E107535

Click to resize E189541

Click to resize E189542

Click to resize E189543
