B-MAX 2012 – Engine – 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU) – Engine Accessories – Installation

Engine - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU) - Engine AccessoriesB-MAX 2012.75 (01/2012-)

Installation

Special Tool(s) / General Equipment

Click to resize E130401

303-1557
Wrench, Generator

Click to resize 21187

303-435
Mounting Stand

Click to resize 21031B

303-435-06
Mounting Bracket for 303-435

Click to resize E84507

303-435-13C
Mounting Plate for 303-435-06

Click to resize E207011

309-004
Pliers, Exhaust Clamps
Floor Crane
Lifting Bracket
Mounting Table Set
Retaining Strap
Wooden Block
  1. Torque: 48 Nm

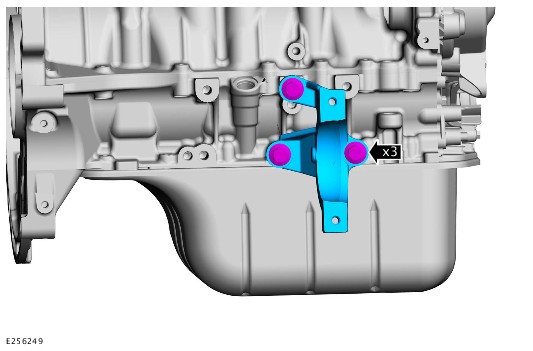

Click to resize E256249

  1. Torque: 10 Nm

Click to resize E188169

  1. Torque: 8 Nm

Click to resize E188168

  1. Torque:
    1 8 Nm
    2 8 Nm
    3 20 Nm

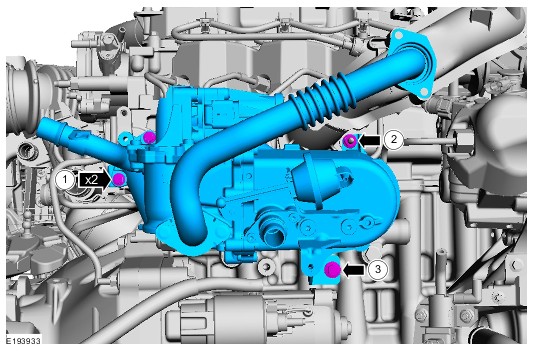

Click to resize E193933

  1. Torque:
    1 8 Nm
    2 8 Nm

Click to resize E188531

  1. Torque:
    1 8 Nm
    2 20 Nm

Click to resize E188530

  1. Torque: 10 Nm

Click to resize E188705

  1. Torque: 22 Nm

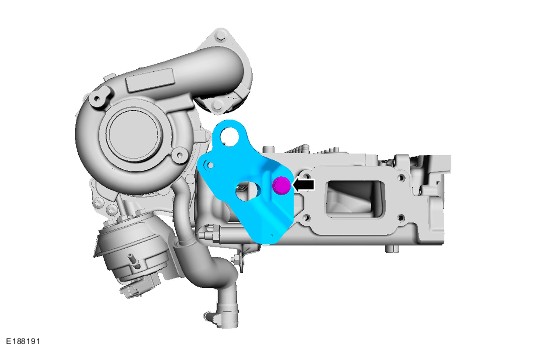

Click to resize E188191

Click to resize E187497

  1. Torque: 25 Nm

Click to resize E187496

  1. Torque: 8 Nm

Click to resize E187495

  1.
    1. Torque: 25 Nm

    1. NOTE: Make sure that a new component is installed.

      Torque: 30 Nm

Click to resize E196468

  1. Torque: 8 Nm

Click to resize E187026

  1. Torque: 8 Nm

Click to resize E188478

  1. Torque: 20 Nm

Click to resize E196470

  1. Torque: 8 Nm

Click to resize E185242

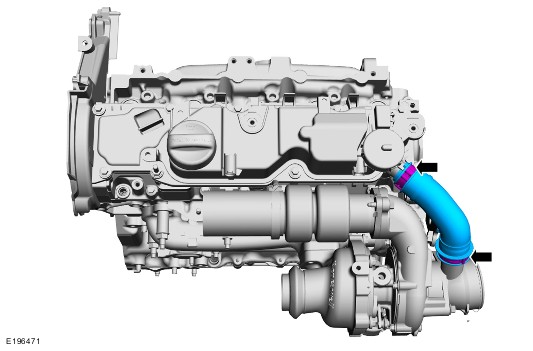

Click to resize E196471

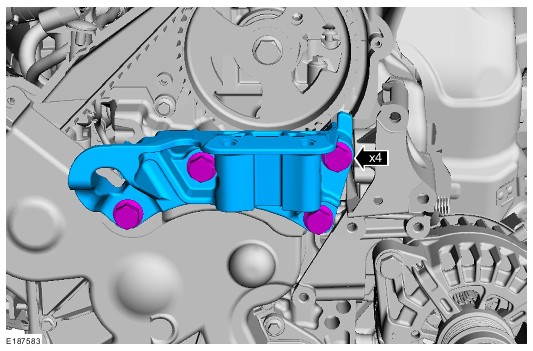

  1. Torque: 55 Nm

Click to resize E187583

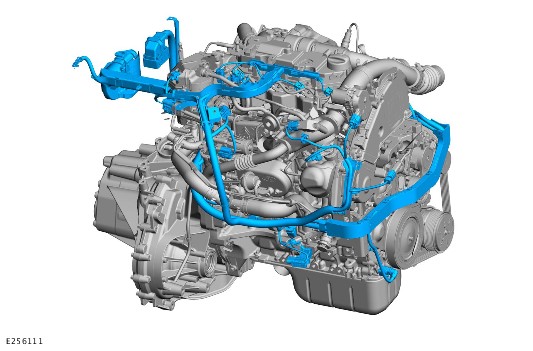

Click to resize E256111

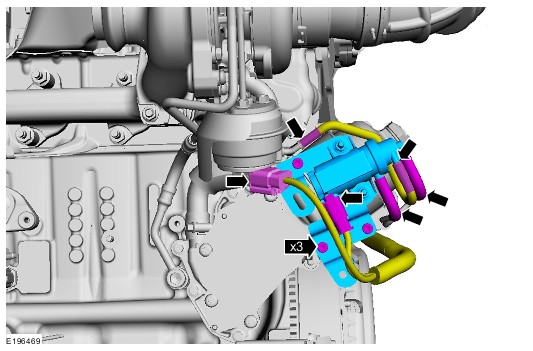

  1. Torque: 10 Nm

Click to resize E196469

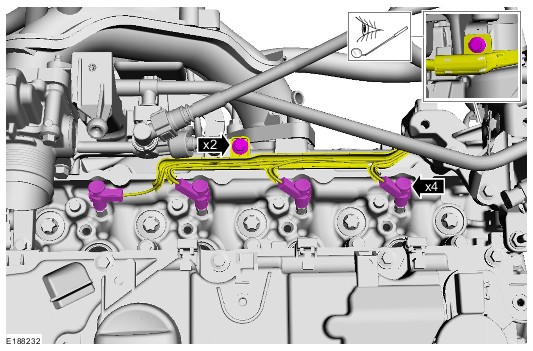

  1. Torque: 8 Nm

Click to resize E188232

Click to resize E185962

Click to resize E256253

Click to resize E195628

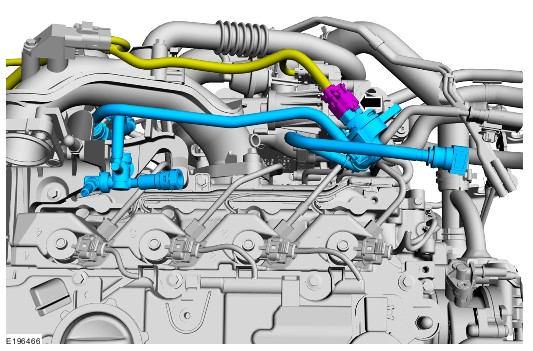

Click to resize E196466

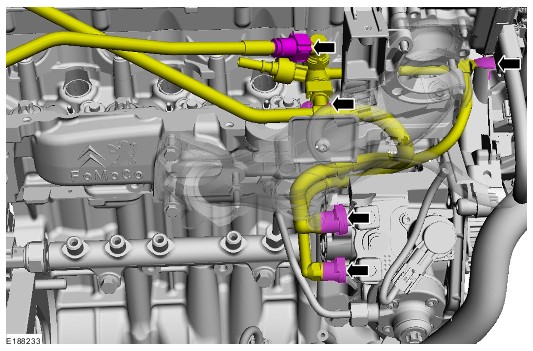

  1. NOTICE:

    caution Extreme cleanliness must be exercised when handling the components.

    caution Make sure that the area around the component is clean and free of foreign material.

    NOTE: Use suitable paper to absorb any escaping fluid.

    Refer to: Quick Release Coupling (310-00F Fuel System - General Information - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), General Procedures).

Click to resize E188233

Click to resize E195158

  1. Refer to: Quick Release Coupling (310-00F Fuel System - General Information - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), General Procedures).

Click to resize E195157

  1. Torque: 8 Nm

Click to resize E188167

Click to resize E189700

  1. Torque:
    1 10 Nm
    2 14 Nm
    3 10 Nm
    4 10 Nm

Click to resize E193931

  1. NOTICE:

    caution Extreme cleanliness must be exercised when handling the components.

    caution Make sure that the area around the component is clean and free of foreign material.

    NOTE: Use suitable paper to absorb any escaping fluid.

    Refer to: Quick Release Coupling (310-00F Fuel System - General Information - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), General Procedures).
    Torque:
    1 8 Nm
    2 8 Nm

Click to resize E203385

  1. Torque: 14 Nm

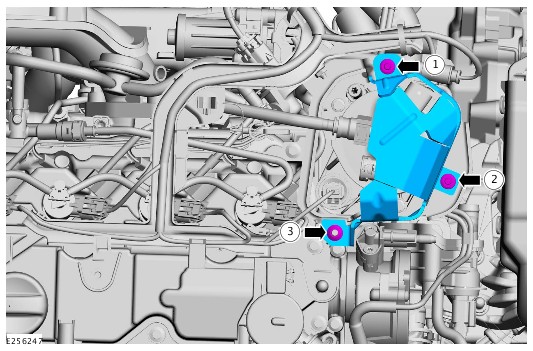

Click to resize E256247

  1. Torque: 5 Nm

Click to resize E193928

  1. Install the General Equipments: Floor Crane, Lifting Bracket

Click to resize E188536

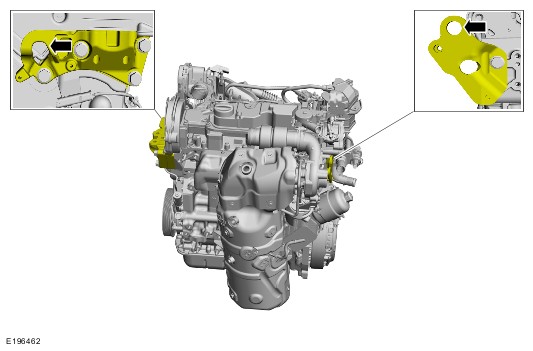

Click to resize E196462

  1. Remove Special Service Tools: 303-435, 303-435-06, 303-435-13C.

Click to resize E188535

  1. Torque:
    1 25 Nm
    2 25 Nm

Click to resize E188537

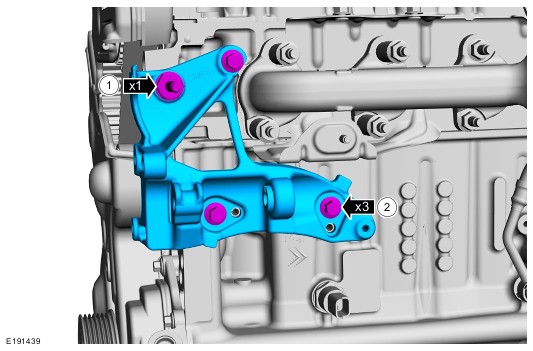

  1. Torque: 25 Nm

Click to resize E191439

  1. Use Special Service Tool: 303-1557.
    Torque:
    1: 45 Nm
    2: 39 Nm

Click to resize E185867

Click to resize E196465

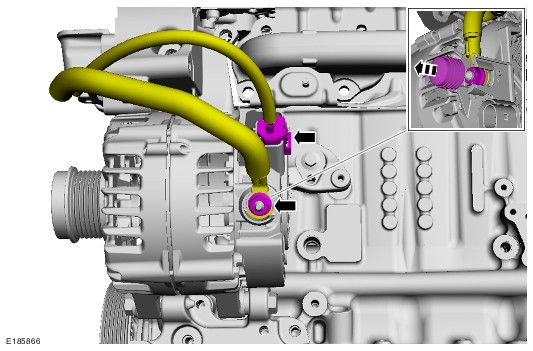

  1. Torque: 15 Nm

Click to resize E185866

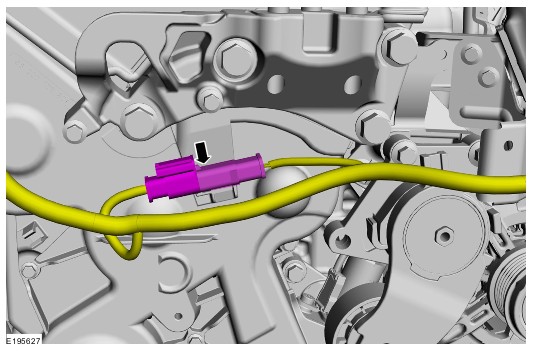

  1. If equipped.

Click to resize E195627

  1. Torque: 25 Nm

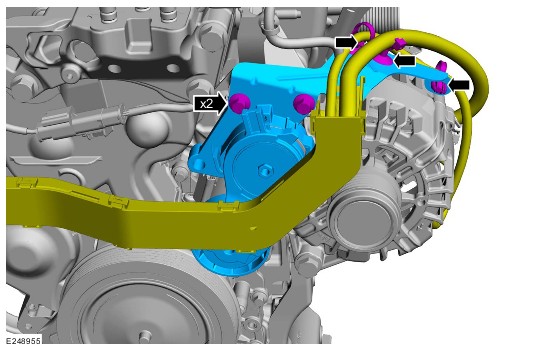

Click to resize E248955

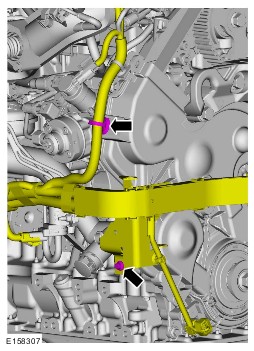

Click to resize E158307

  1. Torque: 8 Nm

Click to resize E185868

  1. Torque: 25 Nm

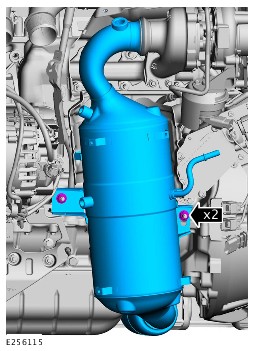

Click to resize E256115

  1. NOTE: Make sure that the component is installed to the position noted before removal.

    Use Special Service Tool: 309-004.
    Torque: 25 Nm

Click to resize E186122

  1. Torque: 8 Nm

Click to resize E255569

  1. Torque:
    1: 48 Nm
    2: 15 Nm
    3: 15 Nm

Click to resize E256113

  1. warningWARNING: Always secure engines, transmissions, or other heavy components to the support fixture with straps and wooden support blocks. Improperly secured assemblies could fall off the fixture, resulting in serious personal injury.

    Install the General Equipments: Retaining Strap, Wooden Block, Mounting Table Set

Click to resize E189092

  1. Remove the General Equipments: Floor Crane, Lifting Bracket

Click to resize E188536
