B-MAX 2012 – Engine – 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU) – Cylinder Head – Removal and Installation

Engine - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU) - Cylinder HeadB-MAX 2012.75 (01/2012-)
Removal and Installation

General Equipment
Plastic Scraper
Materials
NameSpecification
????? H-BW
CU7J-BNDRT-AA
-
RTV Silicone Sealant
WSE-M4G323-A6
Engine Oil - 0W-30
WSS-M2C950-A

Removal

  1. Refer to: Diesel Fuel System Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03D Engine Cooling - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E193236

Click to resize E248458

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E248835

Click to resize E248952

  1. Refer to: Diesel Particulate Filter (DPF) (309-00E Exhaust System - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
  1. Refer to: Air Cleaner (303-12E Intake Air Distribution and Filtering - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
  1. NOTE: Be prepared to collect escaping fluid.

    NOTE: The oil drain plug with O-ring seal is to be reused unless damaged.

Click to resize E190548

Click to resize E195628

Click to resize E219595

Click to resize E203382

Click to resize E186663

Click to resize E186664

Click to resize E193933

  1. NOTE: Be prepared to collect escaping fluid.

Click to resize E188032

  1. NOTE: Be prepared to collect escaping fluid.

Click to resize E190564

Click to resize E188033

Click to resize E195159

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E195157

  1. NOTICE:

    caution Make sure that all openings are sealed with clean blanking caps.

    caution Extreme cleanliness must be exercised when handling the components.

    caution Use an open-ended wrench to prevent the component from turning.

    caution Make sure that the fuel line remains in contact at both ends until both unions nuts have been unscrewed and the area around the joints thoroughly cleaned.

    caution Use suitable paper to absorb any escaping fluid.

Click to resize E186747

Click to resize E119216

Click to resize E195158

Click to resize E195160

  1. NOTE: Note the position of the components before removal.

Click to resize E108477

Click to resize E195645

Click to resize E193928

Click to resize E193929

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E194967

Click to resize E195646

Click to resize E193931

Click to resize E188234

Click to resize E188167

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E195629

Click to resize E188235

Click to resize E188170

  1. Refer to: Timing Belt (303-01F Engine - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).

Click to resize E188236

  1. NOTE: Be prepared to collect escaping fluid.

Click to resize E158228

  1. NOTE: Note the position of the components before removal.

    NOTE: Use a new seal.

Click to resize E187732

  1. NOTE: Note the position of the components before removal.

Click to resize E188193

Click to resize E130328

Installation

  1. NOTE: Make sure that a new component is installed.

    Determine the cylinder head gasket.
    Refer to: Specifications (303-01G Engine - 1.6L Duratorq-TDCi (70kW/95PS) (T3), Specifications).

Click to resize E188036

  1. NOTICE:

    caution Make sure that no fluids are present in the cylinder head bolt threaded bores.

    caution Take extra care not to damage the mating faces.

    caution Make sure that new bolts are installed.

    caution Make sure that the mating faces are clean and free of foreign material.

    Torque:
    Stage 1:
    20 Nm
    Stage 2:
    40 Nm
    Stage 3:
    260°

Click to resize E130359

  1. NOTE: Make sure that the component is installed to the position noted before removal.

Click to resize E188193

  1. NOTE: Make sure that the component is installed to the position noted before removal.

    NOTE: Use new seals.

Click to resize E187732

  1. NOTE: Use new seals.

    NOTE: Make sure that a new component is installed.

    Torque: 30 Nm

Click to resize E158228

  1. NOTE: Make sure that the mating faces are clean and free of foreign material.

    1. Use the General Equipment: Plastic Scraper

Click to resize E172378

  1. NOTE: Make sure that the mating faces are clean and free of foreign material.

    NOTE: The component must be installed within 5 minutes of applying the sealant.

Click to resize E130364

  1. Torque: 10 Nm

Click to resize E188299

  1. Refer to: Timing Belt (303-01F Engine - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
  1. Torque: 20 Nm

Click to resize E188170

  1. Torque:
    1: 13 Nm
    2: 8 Nm

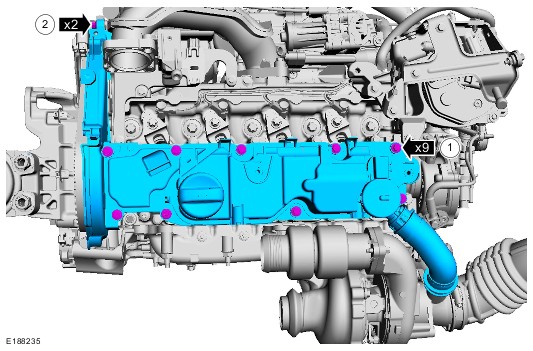

Click to resize E188235

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E195629

  1. Torque: 8 Nm

Click to resize E188167

Click to resize E188234

  1. Torque:
    10 Nm
    14 Nm
    10 Nm
    10 Nm

Click to resize E193931

  1. Torque: 10 Nm

Click to resize E195646

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).
    Torque: 8 Nm

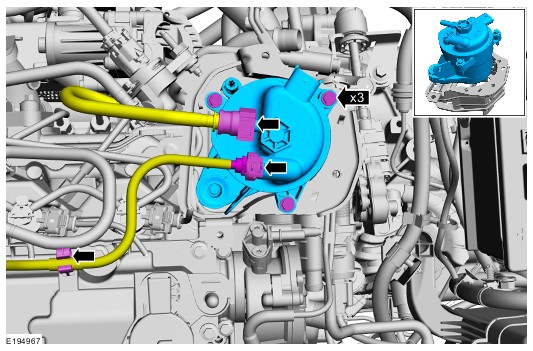

Click to resize E194967

  1. Torque: 14 Nm

Click to resize E193929

  1. Torque: 5 Nm

Click to resize E193928

Click to resize E195645

  1. NOTE: Make sure that a new component is installed.

Click to resize E72924

  1. NOTE: Make sure that the components are installed to the position noted before removal.

Click to resize E108477

  1. NOTE: Make sure that new bolts are installed.

    NOTE: Only tighten the bolts finger tight at this stage.

Click to resize E195160

  1. Torque:

    Stage 1:
    7 Nm
    Stage 2:
    85°

    Stage 1:
    7 Nm
    Stage 2:
    80°

Click to resize E163329

Click to resize E195158

  1. NOTICE:

    caution Extreme cleanliness must be exercised when handling the components.

    caution Use an open-ended wrench to prevent the component from turning.

    caution Make sure that the fuel line remains in contact at both ends until both unions nuts have been unscrewed and the area around the joints thoroughly cleaned.

    caution Use suitable paper to absorb any escaping fluid.

    NOTE: Make sure that new components are installed.

    1. Torque:
      Stage 1:
      20 Nm
      Stage 2:
      25 Nm

Click to resize E186747

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

Click to resize E195157

Click to resize E195159

  1. Torque: 20 Nm

Click to resize E188033

  1. NOTE: Make sure that a new O-ring seal is installed.

    NOTE: Make sure that a new oil filter is installed.

    NOTE: Make sure that the component is clean, free of foreign material and lubricant.

Click to resize E190565

  1. Torque: 7 Nm

Click to resize E188032

  1. Torque:
    8 Nm
    8 Nm
    20 Nm

Click to resize E193933

  1. Torque:
    8 Nm
    8 Nm

Click to resize E186664

Click to resize E186663

Click to resize E203382

  1. Torque:
    25 Nm
    25 Nm

Click to resize E219595

Click to resize E195628

  1. NOTE: The oil drain plug with O-ring seal is to be reused unless damaged.

    Torque: 35 Nm

Click to resize E190548

  1. Refer to: Air Cleaner (303-12E Intake Air Distribution and Filtering - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
  1. Refer to: Diesel Particulate Filter (DPF) (309-00E Exhaust System - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), Removal and Installation).
  1. Torque: 8 Nm

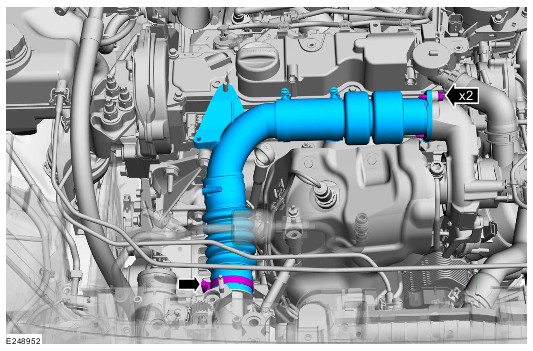

Click to resize E248952

  1. Refer to: Quick Release Coupling (310-00E Fuel System - General Information - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).

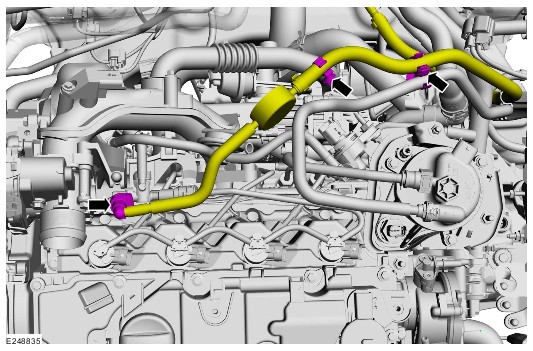

Click to resize E248835

  1. Torque:
    10 Nm
    10 Nm

Click to resize E248458

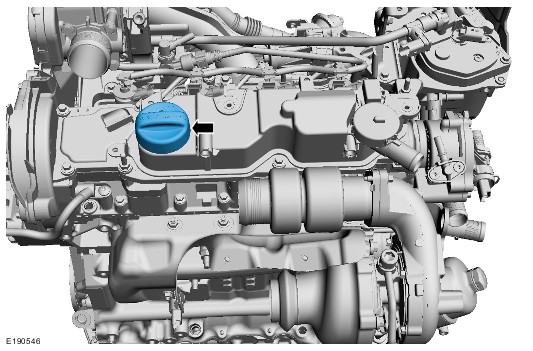

Click to resize E190546

  1. cautionNOTICE: Make sure that the engine oil is to specification.

    NOTE: Make sure that fluid level is to the MAX mark.

    Refer to: Specifications (303-01G Engine - 1.6L Duratorq-TDCi (70kW/95PS) (T3), Specifications).

Click to resize E190547

Click to resize E190546

Click to resize E193237

  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03D Engine Cooling - 1.5L Duratorq-TDCi (55kW/75PS), General Procedures).
    Refer to: Fuel System Bleeding (310-00F Fuel System - General Information - 1.5L Duratorq-TDCi (70kW/95PS)/1.5L Duratorq-TDCi (55kW/75PS) (XU), General Procedures).
